Choosing the Right Seal for 8-Cavity Terminals

Automotive electrical systems face constant exposure to moisture, road debris, heat, vibration, and chemicals. A connector may look sturdy from the outside, but the seal inside plays a major role in how long that connection lasts. For technicians, repair shops, and vehicle owners, choosing the proper seal from the start helps avoid those headaches later. If you're working with connector repairs or replacements, take time to understand seal options before installation. A little extra attention now can help create a more reliable connection for years to come. Choosing the right seal for 8-cavity terminals starts with understanding the environment the connector will face.

How Seals Support Automotive Connectors

An 8-cavity connector contains multiple terminal positions packed into a relatively compact housing. Each cavity provides a pathway for electrical signals or power, and every opening creates an opportunity for contaminants to enter the system. Without proper sealing, water, dirt, salt, and other debris can migrate into the connector body.

Once contamination reaches the terminals, electrical performance can suffer. Corrosion increases resistance, weakens signal transmission, and may eventually lead to complete circuit failure. In some cases, a vehicle may experience intermittent problems that seem impossible to trace back to a connector.

A properly selected seal creates a barrier between the outside environment and the terminal cavity. That barrier helps preserve terminal integrity and supports consistent electrical performance throughout the connector's service life.

Understanding Different Seal Materials

Not all connector seals use the same materials. Manufacturers design seals with specific operating conditions in mind, and material selection affects durability, flexibility, and resistance to environmental exposure.

Silicone remains one of the most common seal materials in automotive applications. It retains flexibility across a wide temperature range and handles exposure to moisture very well. For vehicles operating in harsh climates, silicone seals provide dependable protection.

Rubber-based compounds also appear in many connector systems. These materials can offer excellent compression properties and strong resistance to road contaminants. Depending on the formulation, they may perform particularly well in applications exposed to oils and automotive fluids.

Thermoplastic elastomers combine flexibility with durability. Some connector manufacturers use these materials when applications require repeated assembly and disassembly without excessive wear on the seal surface.

Matching the Seal to the Wire Size

One of the most overlooked aspects of seal selection involves wire diameter. Even a high-quality seal cannot perform properly if it does not fit the wire correctly. A seal designed for a smaller wire may stretch beyond its intended limits. Excessive stretching can weaken the material and reduce sealing effectiveness. Over time, gaps may develop around the wire insulation.

On the other hand, a seal intended for a larger wire may fail to compress adequately. That lack of compression creates pathways for moisture and debris to enter the cavity. Before selecting a seal, verify the wire gauge and insulation diameter. Connector manufacturers typically provide sizing specifications that help technicians choose the correct seal for each application.

Environmental Conditions Influence Seal Selection

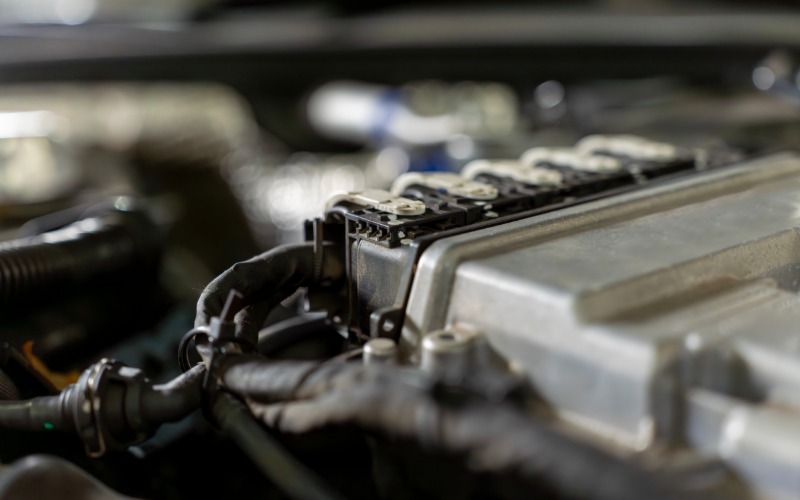

Vehicle connectors operate in many different environments. A connector mounted inside a cabin experiences far different conditions than one installed near a wheel well or under the hood. Under-hood connectors face elevated temperatures along with exposure to oil, fuel vapors, and chemical contaminants. In these locations, seals must withstand heat without becoming brittle or losing flexibility.

Connectors near the chassis encounter water spray, road salt, mud, and debris. These areas demand strong sealing performance because contaminants frequently contact the connector housing. Heavy-duty trucks, forklifts, tractors, and construction equipment may operate in especially demanding conditions. Dust, vibration, and repeated temperature changes place added stress on connector seals. Selecting a seal designed for those environments helps support long-term reliability.

The Role of Compression in Seal Performance

Choosing the right seal for 8-cavity terminals requires knowing the role of compression in seal performance. A connector seal works because it compresses against surrounding surfaces. That compression creates the protective barrier that blocks contaminants from entering the cavity.

Too little compression leaves openings around the wire or terminal. Too much compression can damage the seal and shorten its lifespan. Proper fit creates a balance between those extremes.

When terminals are correctly crimped and fully inserted into the connector housing, seals usually achieve the intended compression level. Problems arise when terminals are not completely seated or when incorrect seals are installed. For that reason, seal selection and installation work together. Even the best seal cannot compensate for improper assembly practices.

Common Signs of Incorrect Seal Selection

Many connector failures trace back to seal issues rather than terminal defects. Recognizing warning signs early can help prevent larger electrical problems. Visible moisture inside the connector housing represents one of the most obvious indicators. Water should never accumulate within a properly sealed connector.

Corrosion around terminal contacts also points toward sealing problems. Green, white, or rust-colored deposits typically signal contamination entering the connector. Damaged seals provide another warning sign. Cracks, tears, flattening, or excessive stretching suggest the seal may not match the application requirements.

Intermittent electrical faults sometimes appear long before visible damage becomes obvious. If a connector experiences repeated moisture-related issues, seal selection deserves close inspection.

Installation Practices That Support Better Results

Even a properly chosen seal requires careful installation. Rushing through connector assembly can compromise sealing performance before the vehicle ever leaves the shop. Inspect seals before installation.

Small cuts or defects may allow contamination to bypass the seal entirely. Replacing a questionable seal takes far less time than diagnosing future electrical problems. Pay close attention to terminal crimp quality. A poor crimp can distort the seal position and affect compression around the wire insulation.

Following manufacturer recommendations helps maintain proper seal placement. After assembly, verify that terminals lock fully into the connector housing. Partial insertion prevents seals from seating correctly and leaves gaps around the cavity opening.

Investing in a Long-Term Solution

Shop for 8-pin wire connectors using the guide above so you don’t overlook key details during your search. Connector performance depends on far more than terminals and housings alone. Seals serve as the first line of defense against moisture, debris, chemicals, and other contaminants that threaten electrical reliability.

Selecting the proper material, matching the seal to the wire size, and accounting for environmental conditions all contribute to better connector performance. For automotive technicians and repair professionals, seal selection deserves the same level of attention as terminal selection. A well-matched seal helps protect connections from premature failure and reduces the likelihood of future electrical issues. Take time to evaluate connector requirements carefully before installation, and you'll create a stronger foundation for dependable vehicle repairs.
