20 AWG ETFE (Tefzel Type) Wire
$1.89
Quantity Pricing
Description

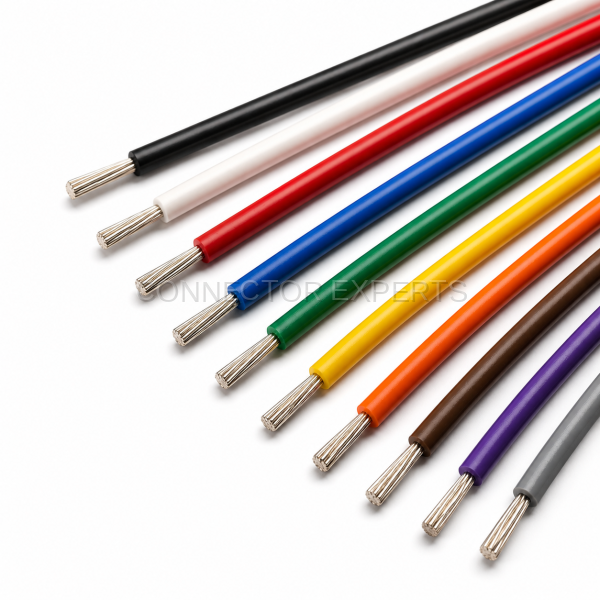

20 AWG ETFE (Tefzel Type) Wire - Sold by the Foot
20 AWG Lightweight ETFE Wire - M22759/32
20 AWG lightweight ETFE insulated wire designed for demanding electrical applications where a small outside diameter, high temperature resistance, and durable insulation are important.
This wire features a flexible stranded tinned copper conductor with thin-wall cross-linked ETFE insulation. It is well suited for automotive, motorsports, aerospace, electrical harness repair, and other high-performance wiring applications.
Ideal For:
- Automotive wire harness repair
- Motorsports wiring
- Custom wiring harnesses
- High-temperature wiring
- Electrical system upgrades
- Aerospace and aviation applications
- Industrial equipment
- Restoration projects
IMPORTANT - SOLD BY THE FOOT
This product is sold by the foot.
Quantity = Total Feet Ordered
Examples:
- Quantity 1 = 1 foot
- Quantity 2 = 2 continuous feet
- Quantity 5 = 5 continuous feet
- Quantity 25 = 25 continuous feet
Whenever possible, orders will be supplied as one continuous length.
Cut wire is a custom-cut item and cannot be returned unless there is a manufacturing defect or shipping error.
Features
- 20 AWG stranded wire
- M22759/32 specification
- Lightweight thin-wall construction
- Cross-linked ETFE insulation
- Stranded tinned copper conductor
- 600V rating
- High-temperature capability
- Durable and abrasion-resistant insulation
- Resistant to fuels, oils, and many chemicals
- Compact outside diameter
- Multiple color options
Specifications
| Specification | Value |
|---|---|
| Wire Gauge | 20 AWG |
| Wire Type | Lightweight ETFE Insulated Wire |
| Specification | M22759/32 |
| Conductor | Stranded Tinned Copper |
| Stranding | 19/32 |
| Insulation | Cross-Linked ETFE |
| Outside Diameter | Approx. 0.050 in. |
| Voltage Rating | 600V |
| Temperature Rating | -65°C to 150°C (-85°F to 302°F) |
| Sold As | By the Foot |
Why Choose ETFE Wire?
ETFE insulated wire provides excellent performance while maintaining a thin and lightweight profile. Its tough insulation offers excellent resistance to heat, abrasion, fuels, oils, and many chemicals.
The smaller outside diameter makes it especially useful for compact wiring harnesses and applications where space and weight are important.
Common Applications
- Automotive wiring
- Engine wiring
- Sensor wiring
- Motorsports harnesses
- Custom wire harnesses
- High-temperature circuits
- Aviation and aerospace wiring
- Electrical repairs
- Industrial equipment
